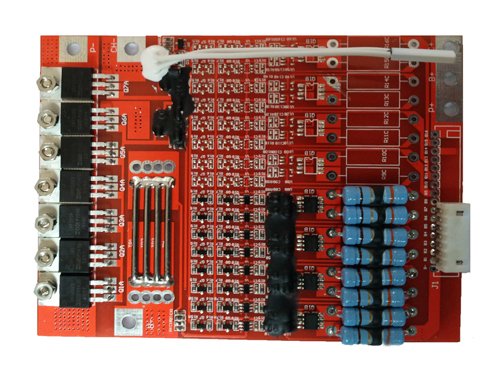

8S 24V 30A LiFePO4 Battery Management System (BMS)

Model Number Battery type   Li-ion/Polymer   LiFePO4
WMB-8030LF  Cell number  8 cells 8 cells
Voltage  Charge voltage 33.6v 28.8v
Current  Max continuous discharge current 30A 30A
Max continuous charge current 30A 30A
Current consumption less than 20uA less than 20uA
Over charge protection  Over charge detection voltage 4.3v 3.9v
Over charge detection delay time 1.2s 1.2s
Over charge release voltage 4.08v around 3.8v around
Over discharge protection Over discharge detection voltage 2.5v 2.0v
Over discharge detection delay time 144mS 144mS
Over discharge release voltage 2.9v 2.3v
Over current protection Over current detection voltage 0.1v 0.1v
Over current detection 120A 120A
Detection delay time 9mS 9mS
Release condition
Cut load,automatically recover
Cut load,automatically recover
Short circuit protection Detection condition Exterior short circuit Exterior short circuit
Detection delay time 320uS 320uS
Release condition Cut load,automatically recover Cut load,automatically recover
Balance Balance voltage for single cell 4.2V 3.6V
Balance current for single cell 84mA 84mA
Resistance Inner resistance
≤20mΩ
≤20mΩ
Temperature Operate temperature range
-40 ~ +75°C
-40 ~ +75°C
Storage temperature range
-40 ~ +75°C
-40 ~ +75°C
Size(L*W*H)
120mm*90mm*9mm
